Toro

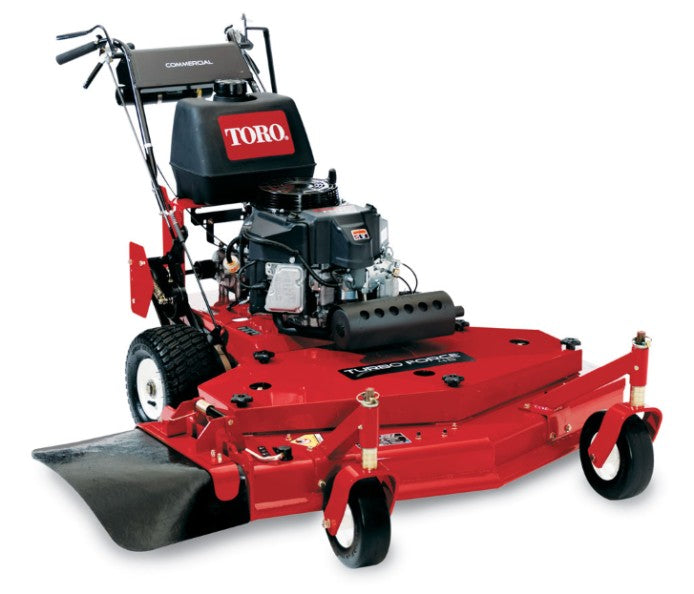

Toro 36" (91 cm) Fixed Deck Gear Drive Pistol Grip (50-State) 39634

$5,399.99 USD
$6,374.99 USD $5,399.99 USD
Sale Sold out
Shipping calculated at checkout.

THIS PRODUCT IS FOR LOCAL PICKUP ONLY. 14.5 HP Kawasaki® FS481V 603cc Engine with 36" (91 cm) TURBO FORCE cutting technology deck.

Features
Pistol Grip Control System
The individual handles make it easier to control tracking long straight lines. The release to go interlock, reduces operator fatigue.
Exclusive TURBO FORCE Deck
High-capacity 7/10 guage TURBO FORCE deck delivers unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Easily handles the most demanding conditions and resists damage from impacts and abrasion.
Rubber Discharge Chute
High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.
Patented Adjustable Baffle
Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.
Smarter design in a bull-nose bumper.
7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.
Rugged Spindle Assembly
Rigorously tested to ensure that it can survive impacts that would destroy lesser spindles. The cast iron housing, with a massive 9-3/8" (23.8 cm) diameter base, absorbs impact loads and distributes them across a broader area of the robust deck shell. Built with maintenance-free sealed ball bearings.
Extended Life Drive System
Extended life drive system with Husqvarna Peerless 700 series transmission, featuring a 9-spline drive coupler.
A Flat Crisp Cut with Precision Blades
(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.
Specifications
Engine 14.5 HP* Kawasaki® FS481V 603cc
Fuel Capacity 5 gallons (19 L)
Height of Cut 1" to 4-1/4" in 1/8" increments (2.5 cm to 11 cm in 3 mm increments)
Number of Blades 2
Starter Recoil
Drive System

5-Speed Transmission
Mulch, Bag, Side Discharge

Side-discharge standard
Air Filter

2-Stage Air Cleaner
Adjustable Discharge

Standard
Blade Tip Speed

18,000 ft/min (5,486 m/min)
Brake System

6" (15 cm) Band Brakes
CARB Compliant

Model 39634
Caster Tires

9" x 3.50-4" (23 cm x 9 - 10 cm) Flat-free
Deck Design

36" (91 cm) TURBO FORCE
Discharge Chute

High-performance 5/16" (8 mm) rubber
Drive Tires

13" x 6.50-6" (33 cm x 15 - 16.5 cm)
Ground Speed

6.2 mph (10 km/h) fwd; reverse assist
Height

41" (104 cm)
Horsepower

14.5 hp
Length

80" (203 cm)
Spindle Housing

Cast iron with 9-3/8" (24 cm) base
Steering Controls

Pistol Grips
Tires

13" x 6.5" (33 cm x 16.5 cm)
Width

37.1" (94 cm) with chute up
Weight

462 lbs (209 kg)
Warranty

For complete product warranty information contact Toro Customer Service
Disclaimer

*The gross horsepower of this engine was laboratory rated by the engine manufacturer in accordance with SAE J1940. As configured to meet safety, emission, and operating requirements, the actual engine horsepower on this class of mower will be significantly lower.
